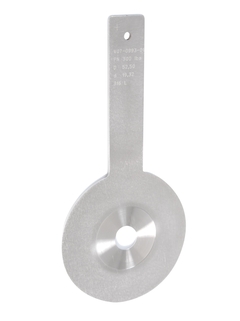

Deltatop DO64P

Ez a termék már nem elérhető.

Az új generációról az előd / utód szakaszban találhat tájékoztatást vagy forduljon a helyi Endress+Hauser képviselethez.

Tulajdonságok és jellemzők

Vissza

Details

  • Mérési elv

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice plate for existing flanges.

  • Sensor features

    Internationally standardized ISO5167-2.

    Orifice plate only.

    All tapping types possible.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 25...1000

    1" ... 40"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass acc. ISO5167 without calibration.

  • Measuring range

    0.1 ... 15'000m3/h

  • Max. process pressure

    PN6 ... 100

    Cl.150 ... 2500

  • Medium temperature range

    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Mérési elv

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice plate for existing flanges.

  • Sensor features

    Internationally standardized ISO5167-2.

    Orifice plate only.

    All tapping types possible.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 25...1000

    1" ... 40"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    2.5 ... 150'000 m3/h

    12.5 ... 750'000 kg/h at 10bar/230°C

  • Max. process pressure

    PN6 ... 100

    Cl.150 ... 2500

  • Medium temperature range

    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Mérési elv

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice plate for existing flanges.

  • Sensor features

    Internationally standardized ISO5167-2.

    Orifice plate only.

    All tapping types possible.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 25...1000

    1" ... 40"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    2.5 ... 150'000m3/h

  • Max. process pressure

    PN6 ... 100

    Cl.150 ... 2500

  • Medium temperature range

    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI
