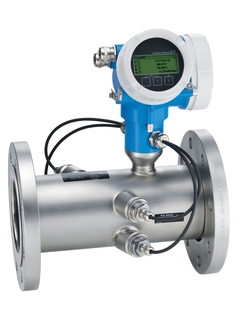

Picture of Ultrasonic flowmeter Proline Prosonic Flow B 200 / 9B2B

Proline Prosonic Flow B 200 ultrasonic flowmeter

The device for accurate, reliable biogas measurement with loop-powered technology

9B2B
Please Wait (spinning wheel)
Ár feltöltés alatt
Az árak ideiglenesen nem érhetők el
Price on request
from CHF ??.-

Specifikációk áttekintése

  • Max. measurement error

    Volume flow (standard):
    ‐ ±1.5 % o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s)
    ‐ ±3 % o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s)
    Volume flow (option):
    ‐ ±0.1 % o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s)
    ‐ ±1.5 % o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s)

  • Measuring range

    Standard: 1 to 30 m/s (3.28 to 98.4 ft/s)
    Option: 0.3 to 30 m/s (0.98 to 98.4 ft/s)

  • Medium temperature range

    0 to +80 °C (+32 to +176 °F)

  • Max. process pressure

    11 bar a (159 psi a)

  • Wetted materials

    Sensor: 1.4404/1.4435 (316L)
    Transducer: HNBR
    Temperature sensor (option): AFM 34

Alkalmazási terület

Prosonic Flow B 200 is the specialist for accurate and reliable measurement of wet biogas and digester gas,even under fluctuating process conditions. With its unique integrated real-time methane fraction analysis, Prosonic Flow B 200 enables continuous measurement and monitoring of gas flow as well as gas quality. In addition to efficient process control and energy balancing, Heartbeat Technology enables compliance and process safety at all times.

  • The measuring principle is unaffected by gas composition

  • Inline flowmeter designed for wet biogas and digester gas under fluctuating process conditions.

Device properties:

  • Multivariable device: flow, temperature and methane

  • Medium temperature: 0 to 80 °C (32 to 176 °F)

  • Process pressure: 0.7 to 11 bar a (10.2 to 159 psi a)

  • Loop-powered technology

  • Robust dual-compartment housing

  • Plant safety: worldwide approvals

Előnyök

  • Integrated real-time methane fraction measurement

  • Optimized for low pressure gas – specialized sensor design

  • No additional pressure loss – full bore design

  • Process transparency – diagnostic capability

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Integrated verification – Heartbeat Technology
