Keeping productivity high, while at the same time lowering operating and maintenance costs, sounds like a familiar challenge to you? You aim to comply with legal requirements as well as ensure product quality and safe operations? To support you in all these situations, we developed Heartbeat Technology. Consisting of diagnostics, verification and monitoring functions, it makes our smart instrumentation even smarter, by providing you with reliable, in-depth sensor and process insights.

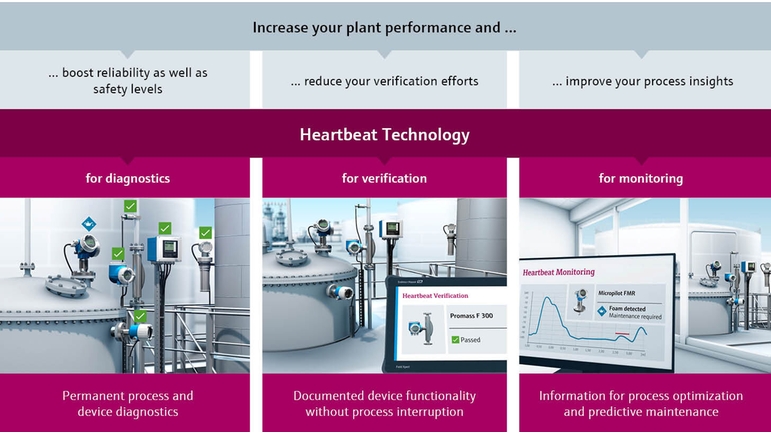

Heartbeat Technology - Diagnostics, Verification, Monitoring

©Endress+Hauser

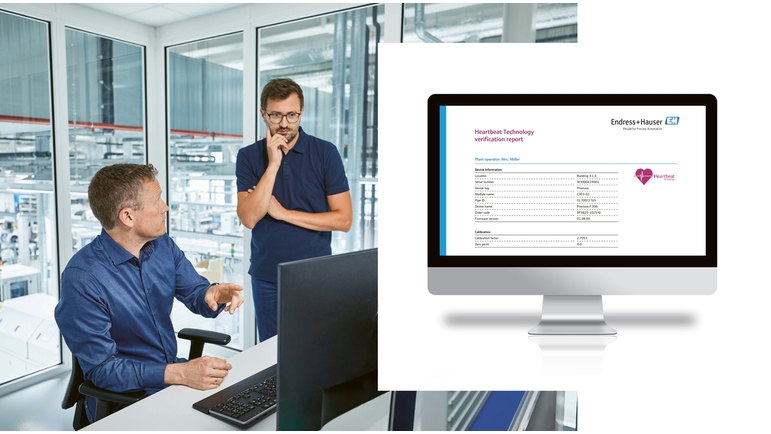

Heartbeat Technology Verification report

©Endress+Hauser

Heartbeat Technology integrated into the Netilion IIoT ecosystem

©Endress+Hauser

Heartbeat Technology – smart instrumentation for optimized and safe processes

Heartbeat Technology for flow, level, pressure, analytic and temperature measuring instruments

Heartbeat Technology verification report stating clear results based on a certified and traceable verification concept

Heartbeat Technology integrated in a connected environment to turn data into knowledge, e.g., with the help of the Netilion IIoT ecosystem

Heartbeat Technology – smart instrumentation for optimized and safe processes

Heartbeat Technology for flow, level, pressure, analytic and temperature measuring instruments

Heartbeat Technology verification report stating clear results based on a certified and traceable verification concept

Heartbeat Technology integrated in a connected environment to turn data into knowledge, e.g., with the help of the Netilion IIoT ecosystem

Benefits

Increased measuring reliability and safety Highest confidence in device performance under various operating conditions due to outstanding diagnostic coverage and developmental compliance with international standards (Heartbeat Diagnostics)
Higher efficiency and plant uptime Efficient operations through timely, clear and standardized diagnostic messages according to NAMUR NE 107, providing easy-to-follow recommendations for remedial actions (Heartbeat Diagnostics)
Certified verification of measuring instruments Guided procedure for in-situ and traceable verification of measuring instruments acc. to ISO 9001 at the push of a button, without interrupting the process – with minimal effort and without device removal (Heartbeat Verification)
Enhanced productivity while ensuring compliance Third-party attested verification concept and automatically generated verification reports enable optimization of calibration and proof test cycles in a compliant manner (Heartbeat Verification)
Predictive, intelligent and timely measures Condition monitoring capability for process optimization and timely prediction of maintenance needs (Heartbeat Monitoring)

All these benefits and functionalities are available across our product portfolio and offer easily understandable device and process insights, e.g., the detection of build-up formation, which enables the optimization of cleaning intervals. Once our smart instruments are connected to your control system, management system or the cloud, additional data can be gained conveniently. Also, Heartbeat Verification can be executed centrally for numerous field devices, and a lot more.

Coriolis flowmeter - Proline Promass F 300

Egyszerű termékek
Könnyen kiválasztható, telepíthető és kezelhető

Műszaki kiválóság

Egyszerűség

Mi az a FLEX?

Alaptermékek
Megbízható, robusztus és kevés karbantartást igényel

Műszaki kiválóság

Egyszerűség

Mi az a FLEX?

Felső kategóriás termékek
Rendkívül funkcionális és kényelmes

Műszaki kiválóság

Egyszerűség

Mi az a FLEX?

Speciális termékek
Nagy igénybevétellel járó alkalmazásokhoz tervezve

Műszaki kiválóság

Egyszerűség

Kombinálható

Mi az a FLEX?

FLEX választék	Műszaki kiválóság	Egyszerűség
F L E X Fundamental választék Eleget tesz az Ön alapvető mérési igényeinek	Műszaki kiválóság	Egyszerűség
F L E X Lean választék Könnyen kezeli az Ön alapvető folyamatait	Műszaki kiválóság	Egyszerűség
F L E X Extended választék Innovatív technológiákkal optimalizálja az Ön folyamatait	Műszaki kiválóság	Egyszerűség
F L E X Xpert választék Megoldás az Ön legnagyobb kihívást jelentő alkalmazásaihoz	Műszaki kiválóság	Egyszerűség Kombinálható

Tudjon meg többet a FLEX választékról

Összehasonlít

Proline Promass F 300 Coriolis flowmeter

Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter

Max. measurement error Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 2 200 000 kg/h (0 to 80 840 lb/min)

Medium temperature range Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58 to +464 °F)
High temperatur option: –50 to +350 °C (–58 to +662 °F)
Option: –196 to +150 °C (–320 to +302 °F)

Max. process pressure PN 100, Class 600, 63K

Wetted materials Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)

Liquiline CM444 is a digital transmitter for pH, ORP, conductivity, oxygen, turbidity and more.

Összehasonlít

4-channel transmitter Liquiline CM444

Expandable multiparameter field device for all industries

Input 1 to 4x Memosens digital input
2x 0/4 to 20mA Input optional
2 to 4x Digital input optional

Output / communication 2 to 8x 0/4 to 20 mA current outputs, alarmrelay,
4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

Ingress protection IP66 / IP 67

Összehasonlít

Liquiphant FTL51B - digital, simple and safe

Point level switch for all liquid media

Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)

Process pressure / max. overpressure limit Vacuum...100 bar
Vacuum...1450 psi

Min. density of medium 0.5 g/cm³
(0.4 g/cm³ optional)

Összehasonlít

Cerabar PMP71B - pressure transmitter

Smart pressure transmitter - its health can be verified without process interruption

Accuracy Standard:
up to 0.05 %
Platinum:
up to 0.025 %

Process temperature Standard:
-40°C…+125°C
(-40°F…+257°F)
Diaphragm seal:
-40°C...+400°C
(-40°F...+752°F)

Pressure measuring range 400 mbar...700 bar
(1.5 psi...10,500 psi)

Main wetted parts 316L, AlloyC,
Tantal, Monel,
PTFE, Gold

Material process membrane 316L, AlloyC,
Tantal, Monel,
PTFE,
Gold

Measuring cell 400 mbar...700 bar
(6 psi...10,500 psi)

Picture of Electromagnetic flowmeter Proline Promag W 400 / 5W4C for the water & wastewater industry

Összehasonlít

Proline Promag W 400 electromagnetic flowmeter

Versatile standard flowmeter for the water and wastewater industry

Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

Medium temperature range Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)

Max. process pressure PN 40, Class 300, 20K

Wetted materials Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

Összehasonlít

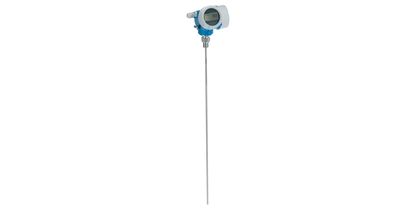

Guided radar measurement Time-of-Flight Levelflex FMP51

The standard sensor for highest demands in liquid level measurement

Accuracy Rod probe :+/- 2 mm (0.08 in)
Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)
Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
Coaxial probe: +/- 2 mm (0.08 in)

Process temperature -50...+200 °C
(-58...+392 °F)

Process pressure / max. overpressure limit Vacuum...40 bar
(Vacuum...580 psi)

Max. measurement distance Rod: 10 m (33 ft) Min DK>1.6
Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6;
30m...45 m (98ft...148 ft) Min DK>1,9
Coaxial probe: 6 m (20 ft) Min DK>1.4

Main wetted parts Rod probe:
316L, Alloy C, Ceramic
Rope probe:
316, 316L, Alloy C, Ceramic
Coaxial probe:
316L, Alloy C, Ceramic, PFA
