Cerabar PMP55

Cerabar PMP55 hygienic housing ©Endress+Hauser
Cerabar PMP55 separate housing ©Endress+Hauser
Cerabar PMP55 with TempC Membrane ©Endress+Hauser

Pressure measuring principle

The new TempC Membrane

Cerabar PMP55 with TempC Membrane ©Endress+Hauser
Cerabar PMP55 beauty shot ©Endress+Hauser

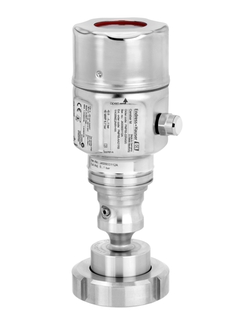

  • Cerabar PMP55 hygienic housing

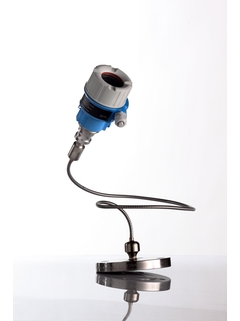

  • Cerabar PMP55 separate housing

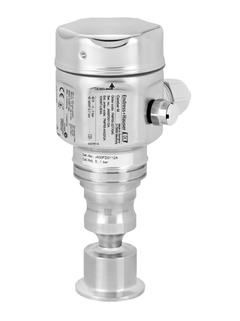

  • Cerabar PMP55 with TempC Membrane

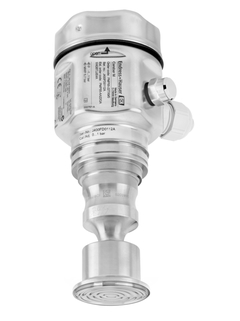

  • Cerabar PMP55 with TempC Membrane

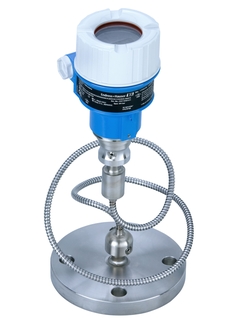

  • Cerabar PMP55 beauty shot

Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

További összetevők

  • Előnyök

    • Large variety of different process connections and membrane materials

    • New TempC Membrane minimizes influences of ambient and process temperature fluctuations

    • Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION...

  • Alkalmazási terület

    Single chamber aluminum or stainless steel (316L) housing.

    • Process connections: Threads, flanges or hygienic connections

    • Process temperature: -70 to +400°C (-94 to +752°F)

    • Measuring ranges: -1/0 up to +400bar (-15/0 up to +6,000psi)

    • Accuracy: ±0.15%, "...

Tulajdonságok és jellemzők

Vissza

Details

  • Mérési elv

    Absolute and gauge pressure

  • Characteristic / Application

    Smart and reliable pressure transmitter, with piezoresistive measuring cell
    and metal welded process isolating
    diaphragm and diaphragm seal.

  • Supply / Communication

    4 ..20mA HART:
    11,5...45V DC
    Ex ia: 11,5...30V DC

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Accuracy

    0,15%
    Platinum 0,075%

  • Long term stability

    < 0,1% von URL/ year

    0,2% of URL/ 5 years

    0,25% of URL/ 10 years

  • Ambient temperature

    -40°C...85°C
    (-40°F...185°F)

  • Process temperature

    -70°C…400°C
    (-94°F…752°F)

  • Process pressure absolute / max. overpressure limit

    600bar (9000psi)

  • Pressure measuring range

    1bar...400bar
    (15psi...6000psi)

  • Main wetted parts

    316L
    AlloyC
    Montel
    Tantal
    Rhodium

  • Process connection

    Diaphragm seal
    Flanges (DIN, ASME, JIS)
    Tri-Clamp ISO2852
    Hygienic connections

  • Max. measurement distance

    4000m (13.123ft) H2O

  • Communication

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    AD2000

  • Hygienic approvals

    3A, EHEDG

    CoC ASME-BPE

  • Marine approval

    GL/ ABS/ LR/ BV/ DNV

  • Options

    local display

  • Application limits

    Measuring cell: Metal welded
    If pressurized, possibly use differential pressure meas-urement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure

  • Mérési elv

    Absolute and gauge pressure

  • Characteristic

    Smart and reliable pressure transmitter, with piezoresistive measuring cell
    and metal welded process isolating diaphragm and diaphragm seal.

  • Supply voltage

    4...20 mA HART

    11,5...45V DC (Non Ex):

    Ex ia: 11,5...30V DC

    PROFIBUS PA:

    9...32 V DC (Non Ex)

    FOUNDATION Fieldbus:

    9...32 V DC (Non Ex)

  • Reference Accuracy

    Standard 0.15%

    Platinum 0.075%

  • Long term stability

    0.1% of URL/ year

    0.2% of URL/ 5 years

    0.25% of URL/ 10 years

  • Process temperature

    -70°C…+400°C
    (-94°F…+752°F)

  • Ambient temperature

    -40°C...+85°C
    (-40°F...+185°F)

  • Measuring cell

    400 mbar...400 bar

    (15 psi...6000 psi)

    relative/ absolute

  • Smallest calibratable span

    20 mbar (0.3 psi)

  • Vacuum resistance

    50 mbar (0.73 psi)

  • Max. Turn down

    20:1

  • Max. overpressure limit

    600 bar (9000 psi)

  • Process connection

    Thread:

    G1/2...G2, MNPT1/2...MNPT2

    Flange:

    DN25...DN100,

    ASME 1"...4",

    JIS 10k

    Diaphragm seal

  • Process connection hygienic

    Tri-Clamp

    DIN11851

    DIN11864-1

    NEUMO

    Varivent

    SMS

    DRD

    Universal adapter

  • Material process membrane

    316L, AlloyC,

    Tantal, PTFE,

    Rhodium>Gold

  • Material gasket

    None, diaphragm welded

  • Fill fluid

    Silicone oil,

    Inert oil,

    Vegetable oil,

    High temperature oil,

    Low temperature oil,

  • Material housing

    Die-cast aluminum,

    AISI 316L

  • Communication

    4...20 mA

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN10204-3.1

    NACE MR0103

  • Hygienic approvals

    CoC ASME-BPE

    3A, EHEDG

  • Marine approvals

    GL/ ABS/ LR/ BV/ DNV

  • Specialities

    TempC Membrane
