Turbimax CUS71D provides real-time data for sedimentation processes in all industries.

Ultrasonic interface sensor
Turbimax CUS71D

Memosens immersion sensor for sedimentation tanks in water, wastewater and utilities

CUS71D
Please Wait (spinning wheel)
Ár feltöltés alatt
Az árak ideiglenesen nem érhetők el
Price on request
from CHF ??.-

Specifikációk áttekintése

  • Measurement range

    0.3 to 10 m (1 to 32 ft)

  • Process temperature

    1 to 50 °C (34 to 122 °F)

  • Process pressure

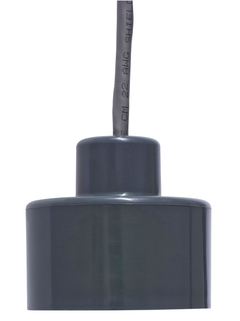

    Standard version: 0 to 6 bar (0 to 87 psi)

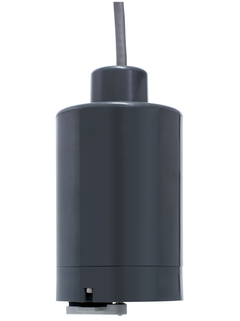

    Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)

Alkalmazási terület

Turbimax CUS71D continuously monitors the separation and transition zones in clarification and settling tanks, ensuring safe, economic and efficient sedimentation processes. It provides you with reliable, real-time measured values in real-time for quick control of valves and actuators. Turbimax CUS71D is ideal sensor for every measuring task - from protection of downstream water in wastewater treatment plants to optimization of backwash times in waterworks.

Turbimax CUS71D is an online ultrasonic interface sensor for:

  • Wastewater treatment plants:
    - Solid sedimentation measurement

  • Drinking and process water:
    - Solid sedimentation measurement
    - Filter monitoring and filter backwash
    - Level measurement in marble chip tanks

  • Utilities of all industries:
    - Static separation processes
    - Reuse of process water
    - Product separation
    - Flotation processes

Előnyök

  • Reliable: Sensor provides accurate and continuous measurement of interface level or range.

  • Safe: Real-time interface information ensures quick control of valves and actuators.

  • Easy: Simple commissioning thanks to predefined calculation models.

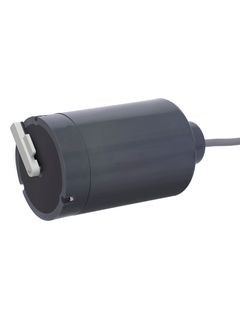

  • Cost-saving: Automatic wiper cleaning function enables long-term, maintenance-free operation.

  • Intelligent: All calibration and sensor-specific data stored in the sensor.

  • Flexible: Mounting hardware suits all clarifier designs for optimal adaption to the measuring task
