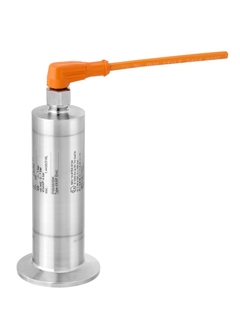

Absolute and gauge pressure Cerabar PMP23

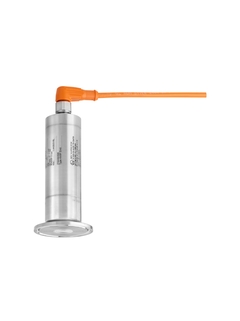

Cerabar PMP23 ©Endress+Hauser
Cerabar PMP23 ©Endress+Hauser

Cerabar PMP23: Part of a strong team for standard applications - Liquiphant, Liquipoint, Cerabar, Ceraphant

Pressure measuring principle

  • Cerabar PMP23
  • Cerabar PMP23

Cost-effective pressure transducer with fully welded design for the food & beverage industry

The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.

Fundamental választék
  • F
  • L
  • E
  • X

  • Egyszerű termékek

  • Könnyen kiválasztható, telepíthető és kezelhető

Műszaki kiválóság

Egyszerűség

  • Alaptermékek

  • Megbízható, robusztus és kevés karbantartást igényel

Műszaki kiválóság

Egyszerűség

  • Felső kategóriás termékek

  • Rendkívül funkcionális és kényelmes

Műszaki kiválóság

Egyszerűség

  • Speciális termékek

  • Nagy igénybevétellel járó alkalmazásokhoz tervezve

Műszaki kiválóság

Egyszerűség

Kombinálható

FLEX választék Műszaki kiválóság Egyszerűség
  • F
  • L
  • E
  • X

Fundamental választék

Eleget tesz az Ön alapvető mérési igényeinek

Műszaki kiválóság
Egyszerűség
  • F
  • L
  • E
  • X

Lean választék

Könnyen kezeli az Ön alapvető folyamatait

Műszaki kiválóság
Egyszerűség
  • F
  • L
  • E
  • X

Extended választék

Innovatív technológiákkal optimalizálja az Ön folyamatait

Műszaki kiválóság
Egyszerűség
  • F
  • L
  • E
  • X

Xpert választék

Megoldás az Ön legnagyobb kihívást jelentő alkalmazásaihoz

Műszaki kiválóság
Egyszerűség

Kombinálható

  • Specifikációk áttekintése

    • Accuracy

      0.3%

    • Process temperature

      -10…+100°C
      (+14…+212°F)
      135°C for 1h
      (275°F for 1h)

    • Pressure measuring range

      400 mbar…+40 bar
      (6...+600psi)

    • Measuring cell

      +400 mbar…+40 bar
      (+6 psi...+600 psi)

Loading alternative products

Gyors kiválasztás

Válasszon a javasolt lehetőségek közül
    -- selected coding
    -- selected label
    <%label%>
    • További opciók is érdeklik? Kérjük, a folytatáshoz használja az egyedi konfigurátort .
    -- selected coding
    -- selected label
    <%feature%>
      <%label%>
    • További opciók is érdeklik? Kérjük, a folytatáshoz használja az egyedi konfigurátort .
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

PMP23
Részletek mutatása Részletek elrejtése
Részletek mutatása
Vissza a gyors kiválasztáshoz
  • <%feature%>
    <%coding%>
    <%label%>
db
Ár feltöltés alatt
Az árak ideiglenesen nem érhetők el
from CHF 803.-
  • Választható bővítmények
Kérjük, a folytatáshoz használja a konfigurátort .
vagy

Egyedi konfiguráció

Folytassa a kiválasztást az elérhető lehetőségek közül

További összetevők

  • Előnyök

    • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

    • IO-Link reduces costs and complexity due to easy configuration via simple configuration tools or through the engineering system

    • Fully welded process connections maximize process safety by minimizing the use of gaskets

    • Enhanced process availability is...

  • Alkalmazási terület

    Pressure transducer to measure absolute or gauge pressure in gases or liquids.

    • Process connections: Flush-mounted hygienic connections, flush mounted thread connections

    • Process temperature: -10°C to +100°C (-40°F to +212°F) and +135°C (+275°F) for max...

Tulajdonságok és jellemzők

Vissza

Details

  • Mérési elv

    Absolute and gauge pressure

  • Characteristic

    Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm for hygienic applications

  • Supply voltage

    10…30 VDC

  • Reference Accuracy

    0.3 %

  • Long term stability

    0.2 % of URL/year

  • Process temperature

    -10 °C…+100 °C

    (+14 °F…+212 °F)

    +135 °C for 1 h

    (+275 °F for 1 h)

  • Ambient temperature

    -40 °C…+85 °C
    (-40 °F…+185 °F)

  • Measuring cell

    +400 mbar…+40 bar
    (+6 psi...+600 psi)

  • Max. overpressure limit

    160 bar (2400 psi)

  • Process connection

    Threads:

    G1, M24

  • Process connection hygienic

    DIN11851,
    Clamp,
    SMS,
    Varivent,
    Universal adapter

  • Communication

    4...20 mA

    IO- Link

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI, EAC

  • Design approvals

    EN 10204-3.1Final inspection report

    Cleaned from oil + grease

    Surface roughness measurement

  • Hygienic approvals

    3A, EHEDG

    EG1935/ 2004

  • Mérési elv

    Absolute and gauge pressure

  • Characteristic / Application

    Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm for hygienic applications

  • Supply / Communication

    10…30 VDC

  • Accuracy

    0.3%

  • Long term stability

    0.2% of URL/year

  • Ambient temperature

    -40…+85°C

    (-40…+185°F)

  • Process temperature

    -10…+100°C

    (+14…+212°F)

    135°C for 1h

    (275°F for 1h)

  • Process pressure absolute / max. overpressure limit

    160 bar (2400 psi)

  • Pressure measuring range

    400 mbar…+40 bar

    (6...+600psi)

  • Process connection

    Thread:

    G1, M24

  • Process connection hygienic

    DIN11851,

    Clamp,

    SMS,

    Varivent,

    Universal adapter

  • Communication

    4...20 mA

    IO- Link

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI, EAC

  • Design approvals

    EN 10204-3.1

    Final inspection report

    Cleaned from oil + grease

    Surface roughness measurement

  • Hygienic approvals

    3A, EHEDG

    EG1935/ 2004

Dokumentumok / Kézikönyvek / Szoftver

Tartozékok / alkatrészek

Nr
Order code
Specification
    • Order code 71280307

      Valve Plug ISO4400 M16, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71280349

      Valve plug ISO4400 NPTF1/2, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71114212

      M12-female plug connec.,90deg,cable side

      Self confectionery connection. Usage: M12 plug socket, cable side.

    • Order code 71337274

      O-ring 15,54x2,62 FKM,FDA, PMP23, PTP3xx

      Consisting of: 5x O-ring 15,54x2,62 FKM,FDA. Usage: PMP23, PTP33B, QMW43.

    • Order code 52023994

      Process adap. M24 Clamp 1...1 1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024001

      Process adap. M24 Clamp 1 1/2, 316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023995

      Process adapter M24 Clamp 2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024002

      Process adapter M24 Clamp 2", 316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023996

      Process adap. M24 Variv F DN25 PN40 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024003

      Proc.adap.M24 Variv.F DN25 PN40 316L 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023999

      Process adapter M24 DIN11851 DN40, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024006

      Process adap. M24 DIN11851 DN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023997

      Proc. adap. M24 Variv N DN40 PN40 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024004

      Proc.adap.M24 Variv N DN40 PN40 316L 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024005

      Process adap. M24 DIN11851 DN50,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52026997

      Process adapter M24 SMS 1-1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52026999

      Process adapter M24 SMS 1-1/2",316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023998

      Process adapter M24 DIN11851 DN50, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024000

      Process adapter M24 APV-Inline, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024007

      Process adapter M24 APV-Inline,316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023572

      Profile gasket silicone, 5 pieces

      Process gasket universal process adapt. FDA listed. Usage: FMB50, FMB70, FMI51/FMI52, FTI51/FTI52/FTI55, PMC51.

    • Order code 52024267

      EPDM O-rings process adapter M24

      5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35, QMW43. process adapter M24.

    • Order code 71100719

      Profile gasket EPDM, 5 pieces

      Process gasket universal adapter. Usage: FMB50, FMB70, PMC51, PMP23.

    • Order code 71431380

      Profile gasket EPDM/SST, EHEDG, 1 piece

      Process gasket universal adapter. Gasket with metal ring. EHEDG approval. Usage: FMB50, FMB70, FMD71/FMD78, PMC51, PMP23.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52005087

      Weld-in adapter G1, 316L

      Flush mount process connection. Material: 316L. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

    • Order code 52010171

      Weld-in adapter G1, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

    • Order code 52005272

      Weld-in dummy, adapter G1

      To avoid any deformation of the adapters 52005087 / 52010171 during welding. Usage: PMP51, PMP135, PTP35.

    • Order code 52005272

      Weld-in dummy, adapter G1

      To avoid any deformation of the adapters 52005087 / 52010171 during welding. Usage: PMP51, PMP135, PTP35.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43. Usage: TM401/TM411, TMR35.

    • Order code 71041381

      Weld-in adapter M24 D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43.

    • Order code 71041383

      Weld-in adapter M24 D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43.

    • Order code 214880-0002

      Weld-in adapter UNI D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52010174

      Weld-in adapter UNI D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52006262

      Weld-in adapter UNI D85, 316L

      Flush mount process connection. Core hole: 85mm. Material: 316L. Seal: silicone profile gasket. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52 PMC51, PMP23, PMP55, PMP75.

    • Order code 52010173

      Weld-in adapter UNI D85, 316L, 3.1

      Flush mount process connection. Core hole: 85mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 71114210

      Weld-in dummy, adapter UNI D65/D85

      Material: brass. To avoid any deformation during welding of weld-in adapters UNI 6" 52006262/52010173 and 214880-0002/52010174.

    • Order code 71350314

      Adapter Uni, Clamp 3", 316L, 3.1

      Process connection. Material: 316L. FDA, 3-A conform. Usage: FMB50, FMB70, FMD71, FMD78, PMC51, PMP23, PMP55.

    • Order code 71350315

      Adapter Uni, Clamp 3", 316L

      Process connection. Material: 316L. FDA, 3-A conform. Usage: FMB50, FMB70, FMD71, FMD78, PMC51, PMP23, PMP55.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.
