Universal CYH101

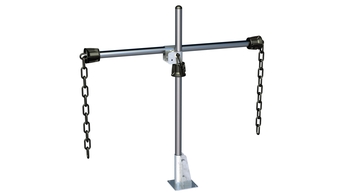

Product picture of: Universal CYH101

Ez a termék már nem elérhető.

Az új generációról az előd / utód szakaszban találhat tájékoztatást vagy forduljon a helyi Endress+Hauser képviselethez.

Details

  • Mérési elv

    Sensor ORP / Redox

  • Mérési elv

    Glass electrode

  • Application

    Sewage treatment, inflow and outflow. Activated sludge basin. Waste water treatment plants. Neutralisation basins.

  • Installation

    The universal suspension assembly holder CYH101 mounted on an upright post is designed for use in open channels, basins or tanks.

  • Characteristic

    Simple and easy installation on basin rims. Flexible adaption to local mounting conditions due to various mounting options and adjustments. Easy rotation of the transverse pipe and altitude adjustment of the suspension chain permit optimal measuring point without interruption of operation. Pendulum motion promotes the sensor self-cleaning effect.

  • Design

    The CYH101 is intended to suspend CYA611, CPA111 and the CLA111.
    The upright post is prepared for mounting of field transmitter.

  • Material

    Upright post: stainless steel AISI 304 Base plate, transverse pipe, immersion tube, weather protection cover: stainless steel AISI 304 Chain: PP

  • Dimension

    Upright post: 1495x60x60 mm
    (58.30x2.34x2.34 inch) Base plate: 150x150 mm
    (5.85x5.85 inch) Transverse pipe: 1490x30x30mm Immersion tube : 2000/3500 x40mm chain : 5000mm

  • Process temperature

    -15°C - 80°C
    (5 - 176°F)

  • Process pressure

    Ambient pressure

  • Mérési elv

    Sensor Oxygen

  • Application

    Sewage treatment, inflow and outflow. Activated sludge basin. Waste water treatment plants. Neutralisation basins.

  • Installation

    The universal suspension assembly holder CYH101 mounted on an upright post is designed for use in open channels, basins or tanks.

  • Characteristic

    Simple and easy installation on basin rims. Flexible adaption to local mounting conditions due to various mounting options and adjustments. Easy rotation of the transverse pipe and altitude adjustment of the suspension chain permit optimal measuring point without interruption of operation. Pendulum motion promotes the sensor self-cleaning effect.

  • Design

    The CYH101 is intended to suspend CYA611, CPA111 and the CLA111.
    The upright post is prepared for mounting of field transmitter.

  • Material

    Upright post : stainless steel AISI 304 Base plate, transverse pipe, immersion tube, weather protection cover : stainless steel

  • Dimension

    Upright post : 1495x60x60mm Base plate : 150x150mm Transverse pipe : 1490x30x30mm Immersion tube : 2000/3500 x40mm chain : 5000mm

  • Process temperature

    -15°C - 80°C

  • Process pressure

    Ambient pressure

  • Mérési elv

    Total Chlorine

  • Mérési elv

    Single beam scattered light

  • Application

    Sewage treatment, inflow and outflow. Activated sludge basin. Waste water treatment plants. Neutralisation basins.

  • Installation

    The universal suspension assembly holder CYH101 mounted on an upright post is designed for use in open channels, basins or tanks.

  • Characteristic

    Simple and easy installation on basin rims. Flexible adaption to local mounting conditions due to various mounting options and adjustments. Easy rotation of the transverse pipe and altitude adjustment of the suspension chain permit optimal measuring point without interruption of operation. Pendulum motion promotes the sensor self-cleaning effect.

  • Design

    The CYH101 is intended to suspend CYA611, CPA111 and the CLA111.
    The upright post is prepared for mounting of field transmitter.

  • Material

    Upright post : stainless steel AISI 304 Base plate, transverse pipe, immersion tube, weather protection cover : stainless steel AISI 304 Chain : PP

  • Dimension

    Upright post : 1495x60x60mm Base plate : 150x150mm Transverse pipe : 1490x30x30mm Immersion tube : 2000/3500 x40mm chain : 5000mm

  • Process temperature

    -15°C - 80°C

  • Process pressure

    Ambient pressure

  • Mérési elv

    Glass electrode

  • Application

    Sewage treatment, inflow and outflow.
    Activated sludge basin.
    Waste water treatment plants.
    Neutralisation basins.

  • Installation

    The universal suspension assembly holder CYH101 mounted on an upright post is designed for use in open channels, basins or tanks.

  • Characteristic

    Simple and easy installation on basin rims.
    Flexible adaption to local mounting conditions due to various mounting options and adjustments.
    Easy rotation of the transverse pipe and altitude adjustment of the suspension chain permit optimal measuring point without interruption of operation.
    Pendulum motion promotes the sensor self-cleaning effect.

  • Design

    The CYH101 is intended to suspend CYA611, CPA111 and the CLA111.
    The upright post is prepared for mounting of field transmitter.

  • Material

    Upright post: stainless steel AISI 304
    Base plate, transverse pipe, immersion tube, weather protection cover: stainless steel AISI 304Chain: PP

  • Dimension

    Upright post: 1495x60x60 mm
    Base plate: 150x150 mm
    Transverse pipe: 1490x30x30 mm
    Immersion tube: 2000/3500 x40 mm
    chain: 5000 mm

  • Process temperature

    -15°C - 80°C
    (5 - 176°F)

  • Process pressure

    Ambient pressure
