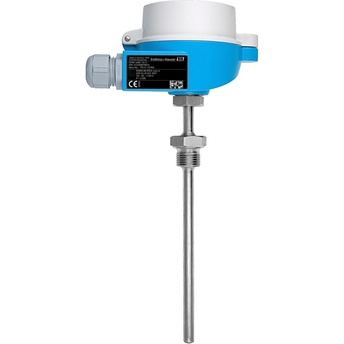

TR10
Modular RTD thermometer

TR10
Modular RTD thermometer ©Endress+Hauser
TR10
Modular RTD thermometer ©Endress+Hauser
TR10
Modular RTD thermometer ©Endress+Hauser

Comprehensive and common temperature measurement technology for almost all branches of industry

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

Gyors kiválasztás

Válasszon a javasolt lehetőségek közül
  • <%label%>
    • További opciók is érdeklik? Kérjük, a folytatáshoz használja az egyedi konfigurátort.
  • <%feature%>
      <%label%>
    • További opciók is érdeklik? Kérjük, a folytatáshoz használja az egyedi konfigurátort.
  • Process Connection
  • <%message%>

vagy

Egyedi konfiguráció

Folytassa a kiválasztást az elérhető lehetőségek közül
  • Előnyök

    • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

    • High degree of insert compatibility and design as per DIN 43772

    • Extension neck to protect the head transmitter...

  • Alkalmazási terület

    • Universal range of application

    • Measuring range: -200 to +600 °C (-328 to 1112 °F)

    • Pressure range up to 75 bar (1088 psi)

    • Degree of protection: up to IP68

    • Vibration-resistant sensor elements up to 60g

Tulajdonságok és jellemzők

Vissza

Details

  • Mérési elv

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly

    universal range of application

    suitable for hazardous areas

    threaded process connection

    with neck

    incl. thermowell / protection tube (metal)

    can be used with StrongSens insert

  • Thermowell / protection tube

    welded protection tube

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    9,0 mm (0,35'')

    11,0 mm (0,43'')

    12,0 mm (0,47'')

    14,0 mm (0,55")

    15,0 mm (0,59")

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

  • Material protection tube/ thermowell

    1.4404 (316L)

    1.4571 (316Ti)

    Alloy C276 (2.4819)

    Alloy 600 (2.4816)

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G1/2"

    G3/4"

    G1"

    NPT1/2"

    NPT3/4"

    M20x1.5

  • Tip shape

    straight

    reduced

    tapered

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT100 TF StrongSens:

    -50 °C ...500 °C

    (-58 °F ...932 °F)

    PT100 WW:

    -200 °C ...600 °C

    (-328 °F ...1.112 °F)

    PT100 TF:

    -50 °C ...400 °C

    (-58 °F ...752 °F)

  • Max. process pressure (static)

    at 20 °C: 75 bar (1088 psi)

  • Accuracy

    class A acc. to IEC 60751

    class AA acc. to IEC 60751

  • Response time

    depending on configuration

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    ATEX IECEx

    NEPSI

    IECEx

    EAC Ex

  • Certification

    Gost Metrology

    SIL (transmitter only)
