Specifikációk áttekintése
-
Accuracy
class 2 acc. to IEC 60584
ASTM E230 and ANSI MC 96.1 -
Response time
depending on configuration:
TC:
t50 = 2 s
t90 = 5 s
RTD:
t50 = 0,8s
t90 = 2s -
Max. process pressure (static)
at 20 °C: 100 bar (1450 psi)
-
Operating temperature range
Type K:
-270 °C ...1.100 °C
(-454 °F ...2.012 °F)
Type J:
-210 °C ...760 °C
(-346 °F ...1.382 °F)
Type N:
-270 °C …1100 °C
(-454 °F ...2.012 °F)
Type T:
-270 °C …370 °C
(-454 °F …698 °F) -
Max. immersion length on request
up to 30.000,00 mm (1181'')
Alkalmazási terület

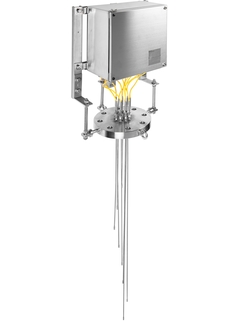

By complying with the highest safety standards, iTHERM TMS01 can be customized for various applications. Bendable into a 3D layout, it provides a complete temperature profile just by using one nozzle. The device is configurable with or without thermowells for optimal response times, mechanical strength or sensors replaceability. It is available either with TC or RTD technology or with our iTHERM StrongSens.
Petrochemical industry
Oil & Gas industry
Heavy Chemical processes
Előnyök
-
Easy-to-use device with modular and flexible design, ready to be installed either for direct contact measurements or by means of sensor-dedicated protecting tubes. The device can also be installed in thermowells already in place
-
Infinite layouts of 3D sensors distribution for any desired process monitoring configuration
-
High degree of customization thanks to a modular product design for easy installation, process integration and maintenance
-
High degree of insert process compatibility as per standard IEC 60584, ASTM E230 and IEC 60751
-
On-board electronic heat protection for highest product durability
-
Compliance to different types of protection for use in hazardous locations for easy process integration
Videók
Xpert választék
-
Speciális termékek
- Nagy igénybevétellel járó alkalmazásokhoz tervezve
Műszaki kiválóság
Egyszerűség
Kombinálható

-
Egyszerű termékek
- Könnyen kiválasztható, telepíthető és kezelhető
Műszaki kiválóság
Egyszerűség
-
Alaptermékek
- Megbízható, robusztus és kevés karbantartást igényel
Műszaki kiválóság
Egyszerűség
-
Felső kategóriás termékek
- Rendkívül funkcionális és kényelmes
Műszaki kiválóság
Egyszerűség
-
Speciális termékek
- Nagy igénybevétellel járó alkalmazásokhoz tervezve
Műszaki kiválóság
Egyszerűség
Kombinálható
FLEX választék | Műszaki kiválóság | Egyszerűség |
---|---|---|
Fundamental választék Eleget tesz az Ön alapvető mérési igényeinek |
Műszaki kiválóság
|
Egyszerűség
|
Lean választék Könnyen kezeli az Ön alapvető folyamatait |
Műszaki kiválóság
|
Egyszerűség
|
Extended választék Innovatív technológiákkal optimalizálja az Ön folyamatait |
Műszaki kiválóság
|
Egyszerűség
|
Xpert választék Megoldás az Ön legnagyobb kihívást jelentő alkalmazásaihoz |
Műszaki kiválóság
|
Egyszerűség
Kombinálható |
-
-
Műszaki információ (TI)
iTHERM ProfileSens TS901 Technical Information
Multipoint temperature profiling system for oil & gas and petrochemical application
EN HU 03/05/2019Nyelv:
Angol
Változat:
03/05/2019
Fájlméret:
9.9 MB
Fájlnév:
TI01346TEN_0119.pdf
-
-
-
Műszaki információ (TI)
iTHERM MultiSens Flex TMS01
Modular direct contact TC and RTD multipointthermometer for Oil & Gas and Petrochemical applications
EN HU 15/06/202224/12/201815/05/201720/11/2015Nyelv:
Angol
Változat:
15/06/2022
Fájlméret:
7.5 MB
Fájlnév:
TI01256TEN_0422-00.pdf
-
-
-
Használati útmutató (BA)
iTHERM MultiSens Flex TMS01 Kezelési útmutató
Moduláris közvetlen érintkezésű TC és RTD többpontos hőmérő
EN HU 30/06/202224/12/201810/07/201730/03/2016Nyelv:
Magyar
Változat:
24/12/2018
Fájlméret:
4 MB
Fájlnév:
BA01471THU_0318.pdf
-
-
-
Különleges dokumentáció (SD)
Device viewer
Technical documentation in other languages
Nyelv:
Angol
Változat:
14/07/2021
Fájlméret:
478.5 KB
Fájlnév:
SD02429R09EN_0121.pdf
-
-
-
Kompetencia brosúra (CP)
Kompetenzbroschüre Erstellung von Temperaturprofilen Vorgefertigte Lösungen für die Öl- und Gasindustrie und die petrochemische Industrie
Kompetenzbroschüre Erstellung von Temperaturprofilen Vorgefertigte Lösungen für die Öl- und Gasindustrie und die petrochemische Industrie
Nyelv:
Német
Változat:
27/09/2019
Fájlméret:
3.9 MB
Fájlnév:
CP00003TDE_0419 (2).pdf
-
-
-
Kompetencia brosúra (CP)
Competence brochure Temperature Profiling Pre-engineered solutions for the oil & gas, petrochemical industries
Competence brochure Temperature profiling Pre-engineered solutions for the oil & gas, petrochemical and chemical industries
Nyelv:
Angol
Változat:
27/09/2019
Fájlméret:
11.2 MB
Fájlnév:
CP00003TEN_0419.pdf
-
-
-
AI (alkalmazási megjegyzés)
LNG storage tank multipoint temperature profiling
Leak detection and cool-down monitoring
Nyelv:
Angol
Változat:
21/07/2021
Fájlméret:
716.3 KB
Fájlnév:
AI01181TEN_0121.pdf
-
-
-
Gyártói nyilatkozat
Product family: Multipoint thermometers
Product root: TMS01- Declaration number: HE_01252_01.20 Manufacturer specification: RoHS Additional information: China RoHS
Nyelv:
Kínai
Változat:
21/03/2020
Fájlméret:
324.7 KB
Fájlnév:
HE_01252_01.20 China RoHS TMS01.pdf
-
-
-
Megfelelőségértékelés az Egyesült Királyságban
Product family: Multipoint thermometers
Product root: TMS01-, TMS02-, TMS11-, TMS21-, TMS31- Declaration number: UK_00474_01.21
Nyelv:
Angol
Változat:
01/12/2021
Fájlméret:
122.5 KB
Fájlnév:
UK_00474_01.21.pdf
-
-
-
Vegyes
Product family: Multipoint thermometers, TEMPTG-
Product root: TEMPTG-, TMS01-, TMS02-, TMS11-, TMS12-, TMS21-, TMS31-, TS901- Region: Eurasian Economic Union Approval number: EA
Nyelv:
Orosz
Változat:
15/06/2020
Fájlméret:
494.5 KB
Fájlnév:
EAEC N RU D-IT.HX37.B.03953_20.pdf
-
